버전 설명
쿠버네티스 버전 1.26.1
구성 CLI 버전 1.21.1
해당 노드는 taint제거한 단일노드임
필요성
kubernetes의 정보를 활용하는 metricbeat-kubernetes.yml파일을 실행해보면 로그 메세지에 service/kubernetes의 Cluster IP 주소에 대해서 no such host 라는 로그가 찍힌적이 있다
그래서 무슨 이유인가 확인해봤다.
도커이미지에서는 확인이 안되었고, Helm으로 띄운 metricbeat에서 manifest를 확인해보니까 해당이미지를 사용하는걸 확인했다.
주의사항 : 버전확인
kube-state-metrics는 kubernetes의 버전에 엄청 민감한것으로 보인다.

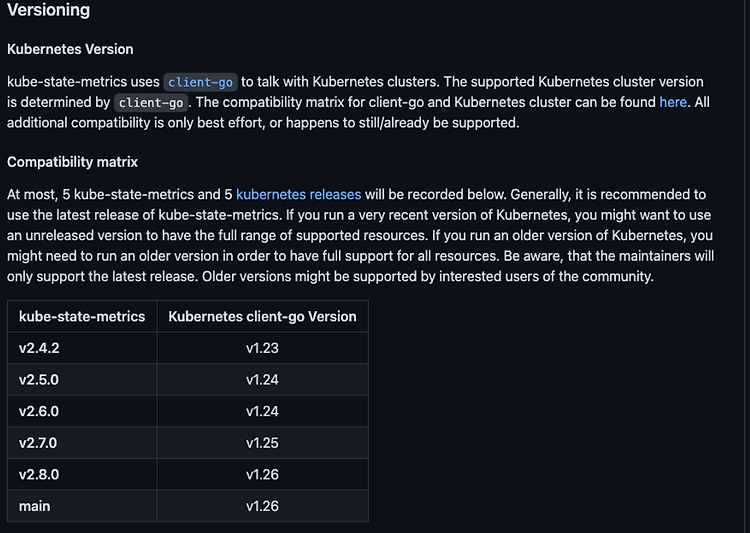

꼭 readme.md의 Compatibility matrix 항목을 확인해야한다.
Kubernetes client-go Version이라고 적혀있지만, 그냥 Kubernetes의 버전과 동일한것같았다.
kubectl get nodes -o wide
를 통해서 쿠버네티스의 버전을 확인해보고, 해당 버전에 맞는 kube-state-metrics 버전을 설치해야한다.
설치
현재 노드에서 K8s의 버전이 1.26.1 으로 확인되었고, 이는 main의 버전과 동일(2.8.0) 하므로, 바로 클론해준다
git clone <https://github.com/kubernetes/kube-state-metrics>
실행
cd kube-state-metrics/examples
kubectl apply -f standard
이러면 standard 안에 있는 파일들이 실행되는데, 하나의 파일로 합치면 다음과 같다
실행결과 : 로그
I0220 09:21:11.077299 1 wrapper.go:98] "Starting kube-state-metrics" │
│ I0220 09:21:11.077631 1 server.go:186] "Used default resources" │
│ I0220 09:21:11.077725 1 types.go:184] "Using all namespaces" │
│ I0220 09:21:11.077792 1 server.go:219] "Metric allow-denylisting" allowDenyStatus="Excluding the following lists that were on denylist: " │
│ W0220 09:21:11.077827 1 client_config.go:618] Neither --kubeconfig nor --master was specified. Using the inClusterConfig. This might not work. │
│ I0220 09:21:11.078856 1 server.go:364] "Tested communication with server" │
│ I0220 09:21:11.086812 1 server.go:369] "Run with Kubernetes cluster version" major="1" minor="26" gitVersion="v1.26.1" gitTreeState="clean" gitCommi │
│ I0220 09:21:11.086842 1 server.go:370] "Communication with server successful" │
│ I0220 09:21:11.087467 1 server.go:316] "Started metrics server" metricsServerAddress=":8080" │
│ I0220 09:21:11.087917 1 metrics_handler.go:99] "Autosharding disabled" │
│ I0220 09:21:11.088062 1 server.go:74] levelinfomsgListening onaddress:8080 │
│ I0220 09:21:11.088116 1 server.go:74] levelinfomsgTLS is disabled.http2falseaddress:8080 │
│ I0220 09:21:11.088753 1 builder.go:254] "Active resources" activeStoreNames="certificatesigningrequests,configmaps,cronjobs,daemonsets,deployments,e │
│ I0220 09:21:11.089973 1 server.go:305] "Started kube-state-metrics self metrics server" telemetryAddress=":8081" │
│ I0220 09:21:11.090161 1 server.go:74] levelinfomsgListening onaddress:8081 │
│ I0220 09:21:11.090229 1 server.go:74] levelinfomsgTLS is disabled.http2falseaddress:8081 │
│ Stream closed EOF for kube-system/kube-state-metrics-7fd4bb7bb5-pwm78 (kube-state-metrics)
임의의 포트를 물고, 리버스 프록시를 해주는것같다.
단일파일
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
labels:
app.kubernetes.io/component: exporter
app.kubernetes.io/name: kube-state-metrics
app.kubernetes.io/version: 2.8.0
name: kube-state-metrics
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: kube-state-metrics
subjects:
- kind: ServiceAccount
name: kube-state-metrics
namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
labels:
app.kubernetes.io/component: exporter
app.kubernetes.io/name: kube-state-metrics
app.kubernetes.io/version: 2.8.0
name: kube-state-metrics
rules:
- apiGroups:
- ""
resources:
- configmaps
- secrets
- nodes
- pods
- services
- serviceaccounts
- resourcequotas
- replicationcontrollers
- limitranges
- persistentvolumeclaims
- persistentvolumes
- namespaces
- endpoints
verbs:
- list
- watch
- apiGroups:
- apps
resources:
- statefulsets
- daemonsets
- deployments
- replicasets
verbs:
- list
- watch
- apiGroups:
- batch
resources:
- cronjobs
- jobs
verbs:
- list
- watch
- apiGroups:
- autoscaling
resources:
- horizontalpodautoscalers
verbs:
- list
- watch
- apiGroups:
- authentication.k8s.io
resources:
- tokenreviews
verbs:
- create
- apiGroups:
- authorization.k8s.io
resources:
- subjectaccessreviews
verbs:
- create
- apiGroups:
- policy
resources:
- poddisruptionbudgets
verbs:
- list
- watch
- apiGroups:
- certificates.k8s.io
resources:
- certificatesigningrequests
verbs:
- list
- watch
- apiGroups:
- discovery.k8s.io
resources:
- endpointslices
verbs:
- list
- watch
- apiGroups:
- storage.k8s.io
resources:
- storageclasses
- volumeattachments
verbs:
- list
- watch
- apiGroups:
- admissionregistration.k8s.io
resources:
- mutatingwebhookconfigurations
- validatingwebhookconfigurations
verbs:
- list
- watch
- apiGroups:
- networking.k8s.io
resources:
- networkpolicies
- ingressclasses
- ingresses
verbs:
- list
- watch
- apiGroups:
- coordination.k8s.io
resources:
- leases
verbs:
- list
- watch
- apiGroups:
- rbac.authorization.k8s.io
resources:
- clusterrolebindings
- clusterroles
- rolebindings
- roles
verbs:
- list
- watch
---
apiVersion: apps/v1
kind: Deployment
metadata:
labels:
app.kubernetes.io/component: exporter
app.kubernetes.io/name: kube-state-metrics
app.kubernetes.io/version: 2.8.0
name: kube-state-metrics
namespace: kube-system
spec:
replicas: 1
selector:
matchLabels:
app.kubernetes.io/name: kube-state-metrics
template:
metadata:
labels:
app.kubernetes.io/component: exporter
app.kubernetes.io/name: kube-state-metrics
app.kubernetes.io/version: 2.8.0
spec:
automountServiceAccountToken: true
containers:
- image: registry.k8s.io/kube-state-metrics/kube-state-metrics:v2.8.0
livenessProbe:
httpGet:
path: /healthz
port: 8080
initialDelaySeconds: 5
timeoutSeconds: 5
name: kube-state-metrics
ports:
- containerPort: 8080
name: http-metrics
- containerPort: 8081
name: telemetry
readinessProbe:
httpGet:
path: /
port: 8081
initialDelaySeconds: 5
timeoutSeconds: 5
securityContext:
allowPrivilegeEscalation: false
capabilities:
drop:
- ALL
readOnlyRootFilesystem: true
runAsUser: 65534
nodeSelector:
kubernetes.io/os: linux
serviceAccountName: kube-state-metrics
---
apiVersion: v1
automountServiceAccountToken: false
kind: ServiceAccount
metadata:
labels:
app.kubernetes.io/component: exporter
app.kubernetes.io/name: kube-state-metrics
app.kubernetes.io/version: 2.8.0
name: kube-state-metrics
namespace: kube-system
---
apiVersion: v1
kind: Service
metadata:
labels:
app.kubernetes.io/component: exporter
app.kubernetes.io/name: kube-state-metrics
app.kubernetes.io/version: 2.8.0
name: kube-state-metrics
namespace: kube-system
spec:
clusterIP: None
ports:
- name: http-metrics
port: 8080
targetPort: http-metrics
- name: telemetry
port: 8081
targetPort: telemetry
selector:
app.kubernetes.io/name: kube-state-metrics
